Loaded Bikes VW Transporter Bike Rack

We’re pleased to offer the Loaded Bikes VW Transporter Bike Rack, which comes in double or triple-wheel chock versions, enabling you to transport two to three motorbikes or bicycles inside the van.

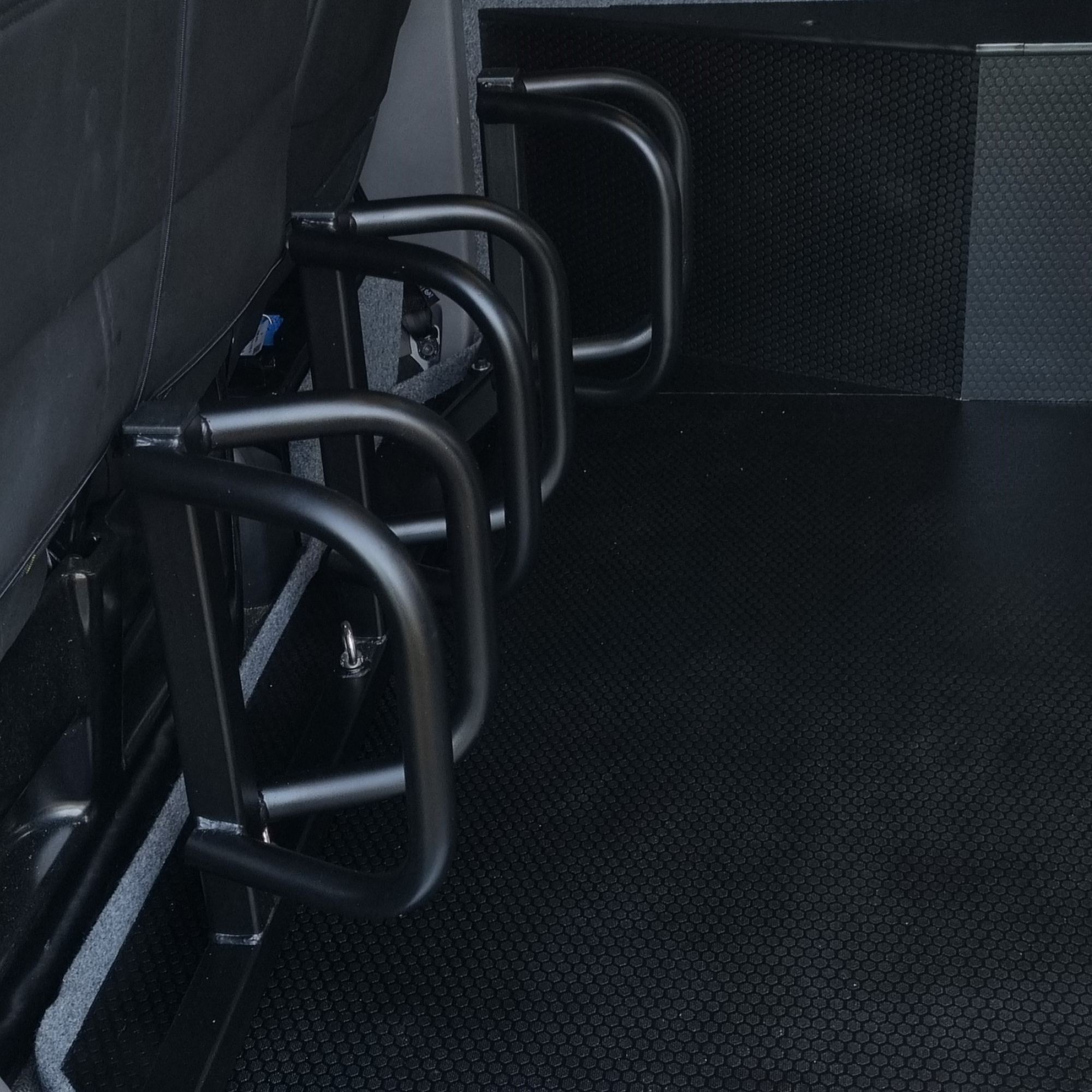

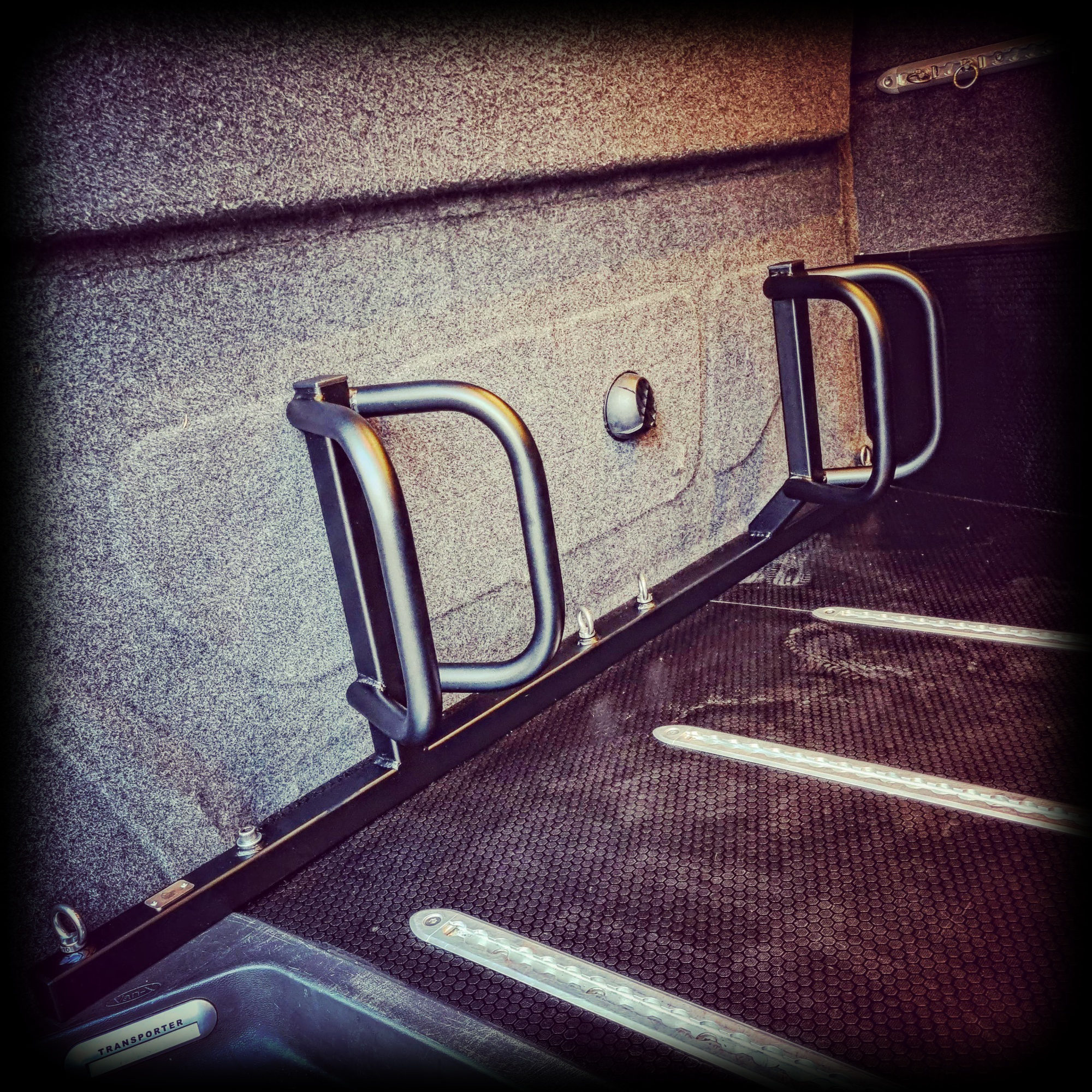

The Loaded Bikes VW Transporter Bike Rack, with double or triple wheel chocks, can be installed directly into the existing tie-down points at the front end of T5 to T6.1 Transporters, creating a solid and secure means of carrying up to three bicycles or motorbikes inside the vehicle. There are several additional tie-downs located across the length of the rack to provide extra options for lashing your bikes securely in place.

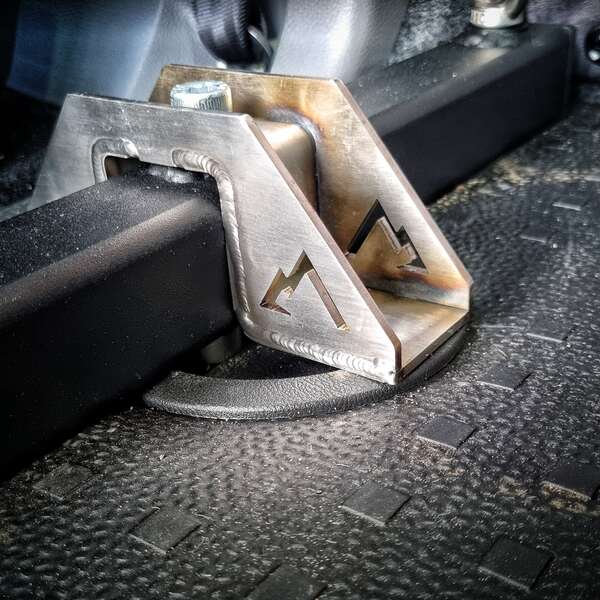

Designed to be used in vehicles with ply floors so the load is spread, the bike rack is also available with additional stiffener brackets to aid stability on vans fitted with soft Kombi-style floors.



The bike rack comes with all fixings included, so if your panel van has a soft Kombi floor, select the relevant Kombi option when ordering.



If you don’t feel you need the stiffener brackets, then select the Panel version instead.



The bike racks are made up in small batches, so please allow a two to three week restocking period when this product shows as out of stock.



Vehicle Compatibility:



VW Transporter T5 through to T6.1 Panel and Kombi Vans (Kombi version comes with extra brackets to stabilise the bike rack on the softer floor)



Product Specification:



• Welded and powder-coated steel frame.

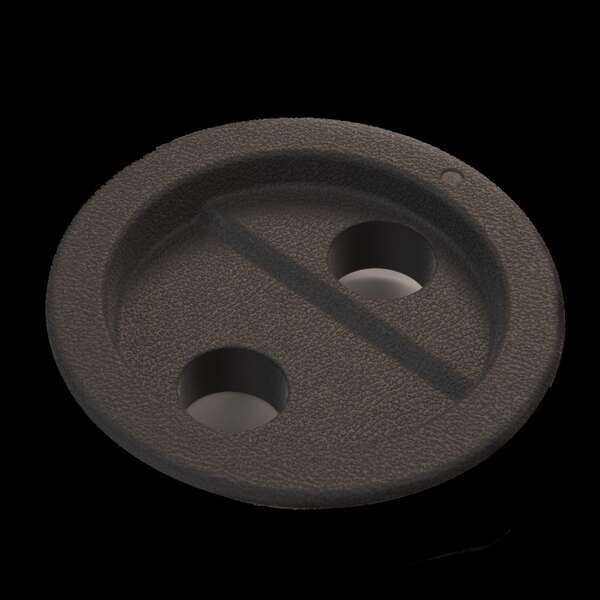

• Attaches to the existing tie-down points by 2x M10 x 90mm bolts (supplied)
• The triple bike rack will fit up to 3 bikes. We recommend that for larger bikes, the middle bike is fitted in backwards
• Driver’s side wheel chock is off-set to reduce the risk of clashing handlebars
• Includes M10 stainless steel eyebolts
• Works with or without a factory-fitted bulkhead in place.
• Available in double or triple wheel chock versions.

Motorbike Compatibility

• Motocross
• Enduro
• Supermoto
• Trials
• Super Bikes

Bicycle Compatibility

• Down Hill Mountain Bike
• Enduro Mountain Bike
• Trail Mountain Bike
• XC Mountain Bike
• E-Bike
• Fat Bike

The rack can also accommodate road bicycles, but it’s designed for fatter tyred bikes.



Additional information:



Weight: Triple Rack Approx. 16kg

Approx. Product Dimensions: 161.0 × 28.9 × 45.5 cm
