Loaded Bikes Fork Mounts

The Loaded Bikes Fork Mount is a great way to carry your bicycles securely inside your van with the L-Track fitment providing optimal adaptability on where you attach the bikes and how closely you can fit them.

The fork mount’s curved shape is designed to create off-set between bikes without the need to install multiple L-Track rails to slide them in to position, or the need to turn the handlebars and adjust the bike’s headset.

Finer rotational adjustment is facilitated by the single, central fixing which can lock in to position around 360° at 22.5° increments.

The fork mount comes with a single stud locator, thumbnut and a pair of spacers to suit a variety of bicycle fork types.

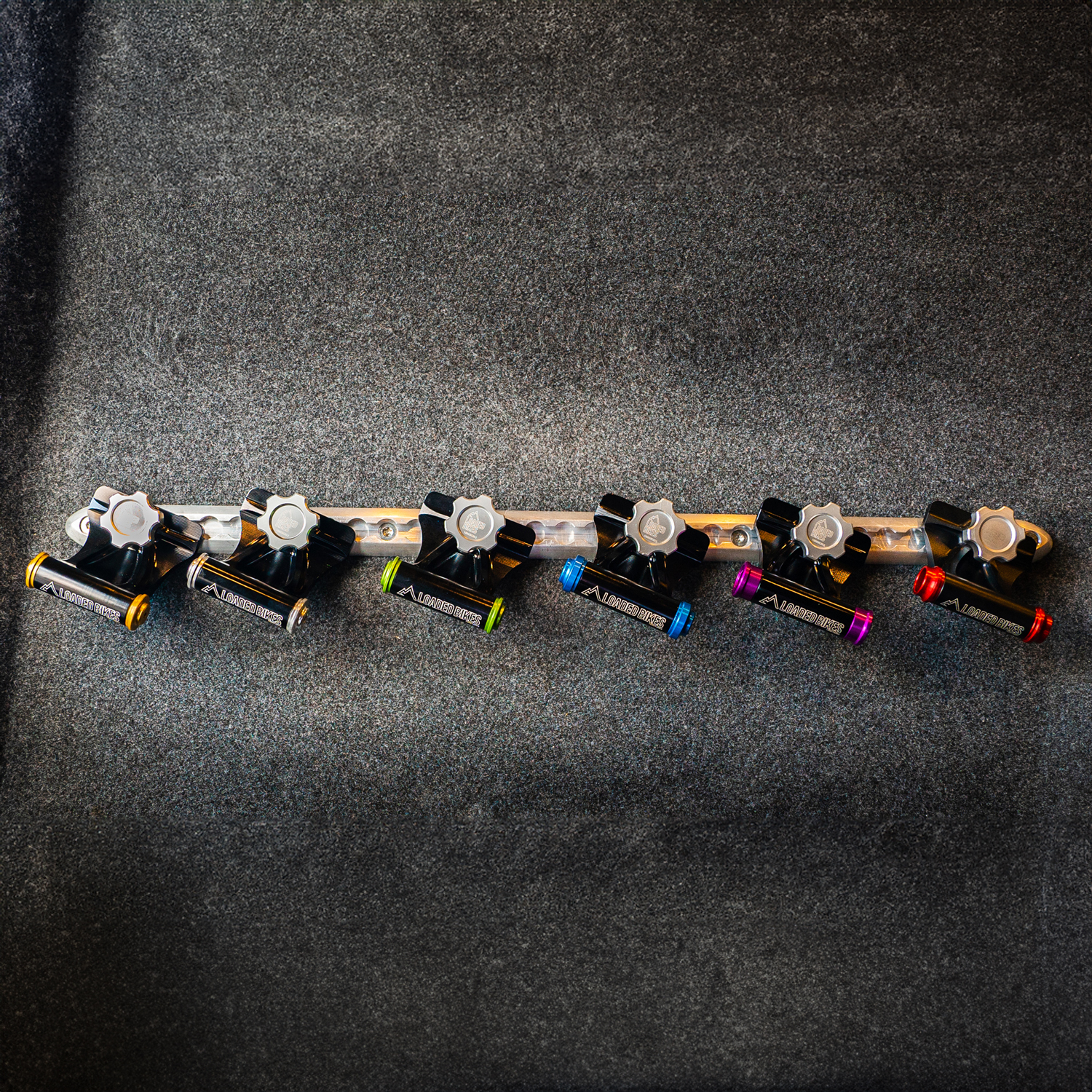

Spacer Options:

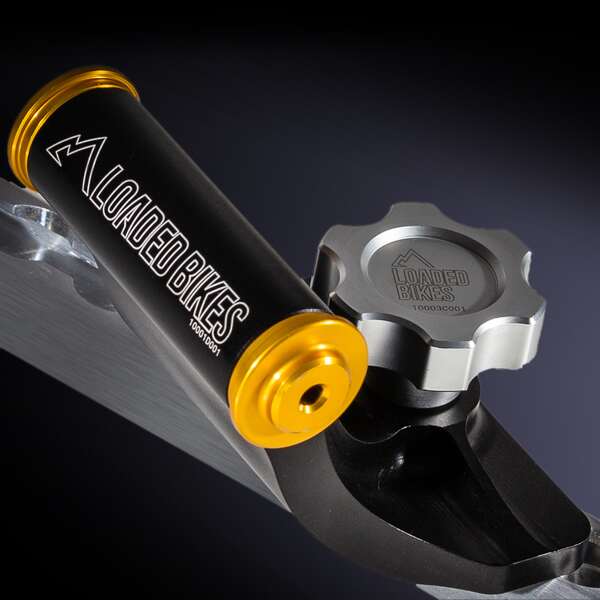

• 5x100mm QR (gold)

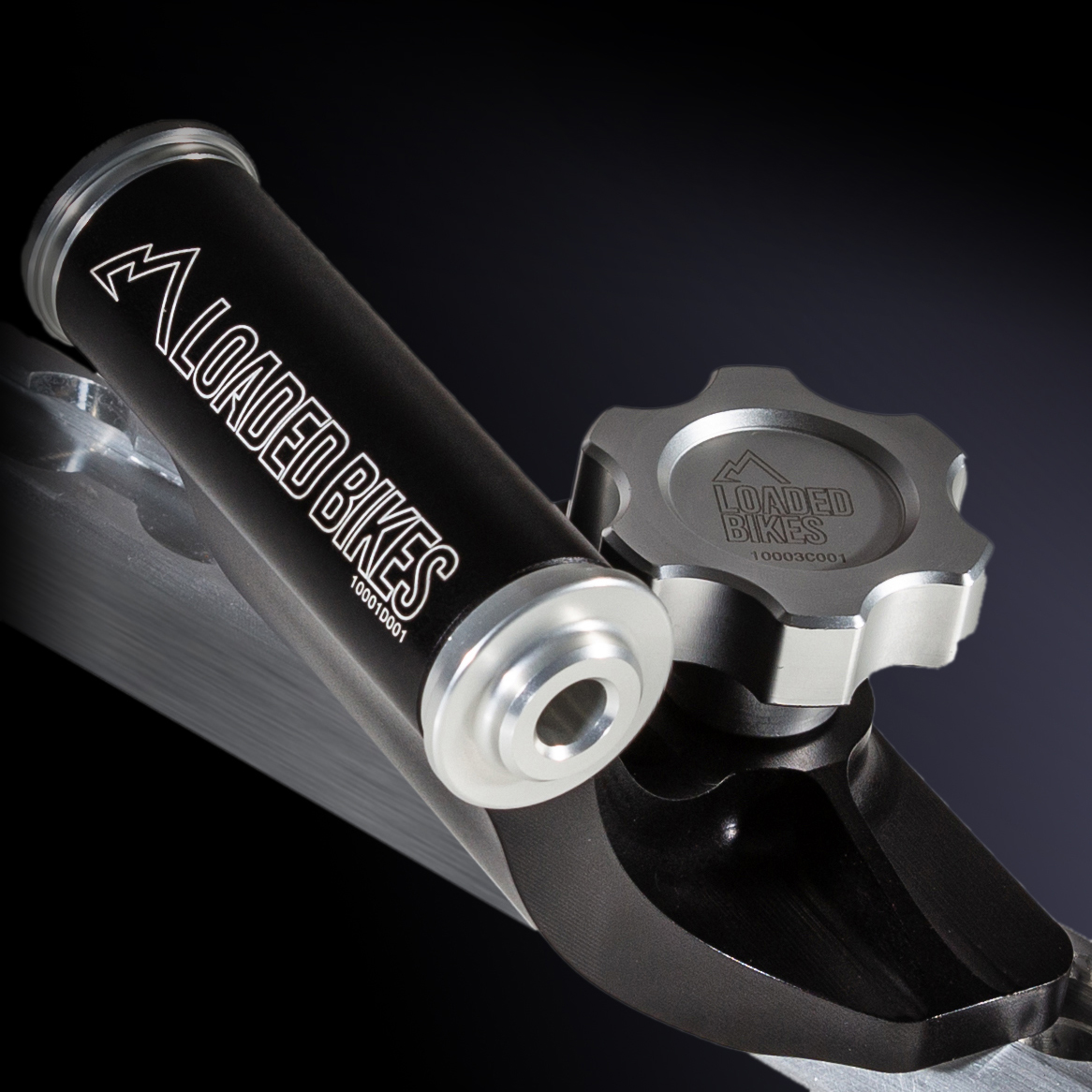

• 9x100mm QR (silver)

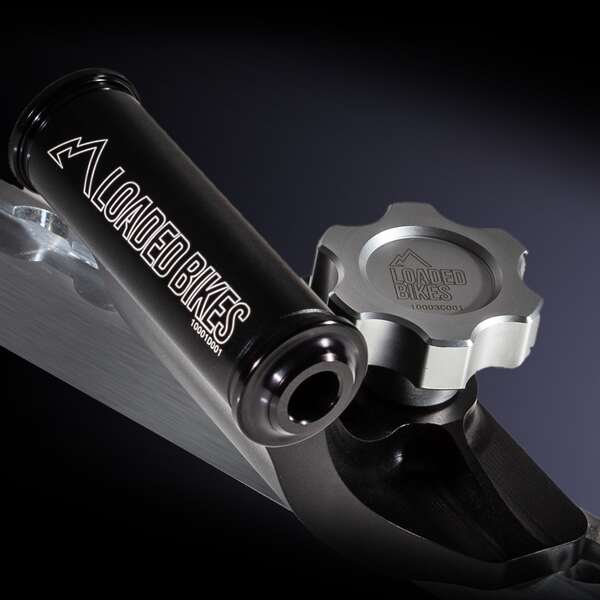

• 12x100mm Road & Gravel (black)

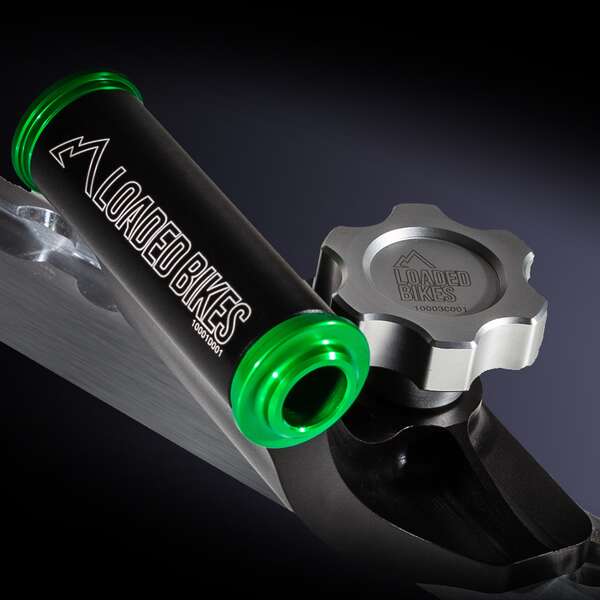

• 15x100mm Non-Boost (green)

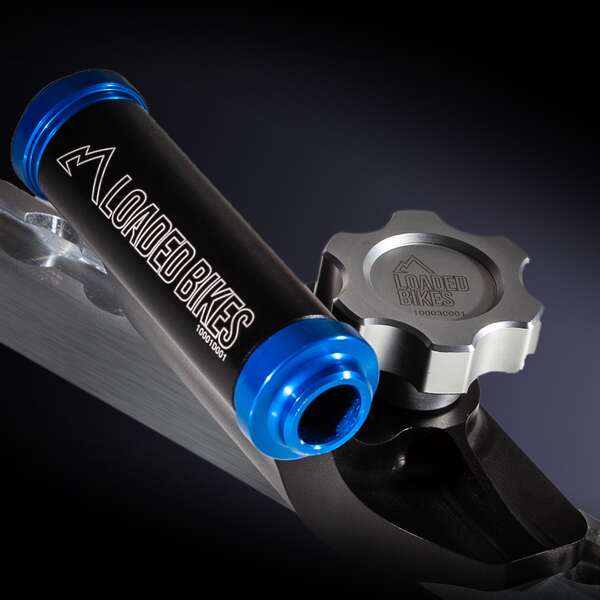

• 15x110mm Boost (blue)

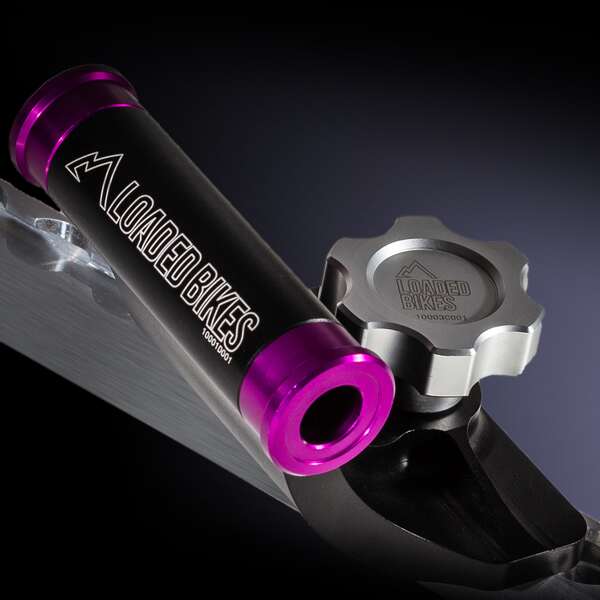

• 15x110mm Boost Torque Cap (purple)

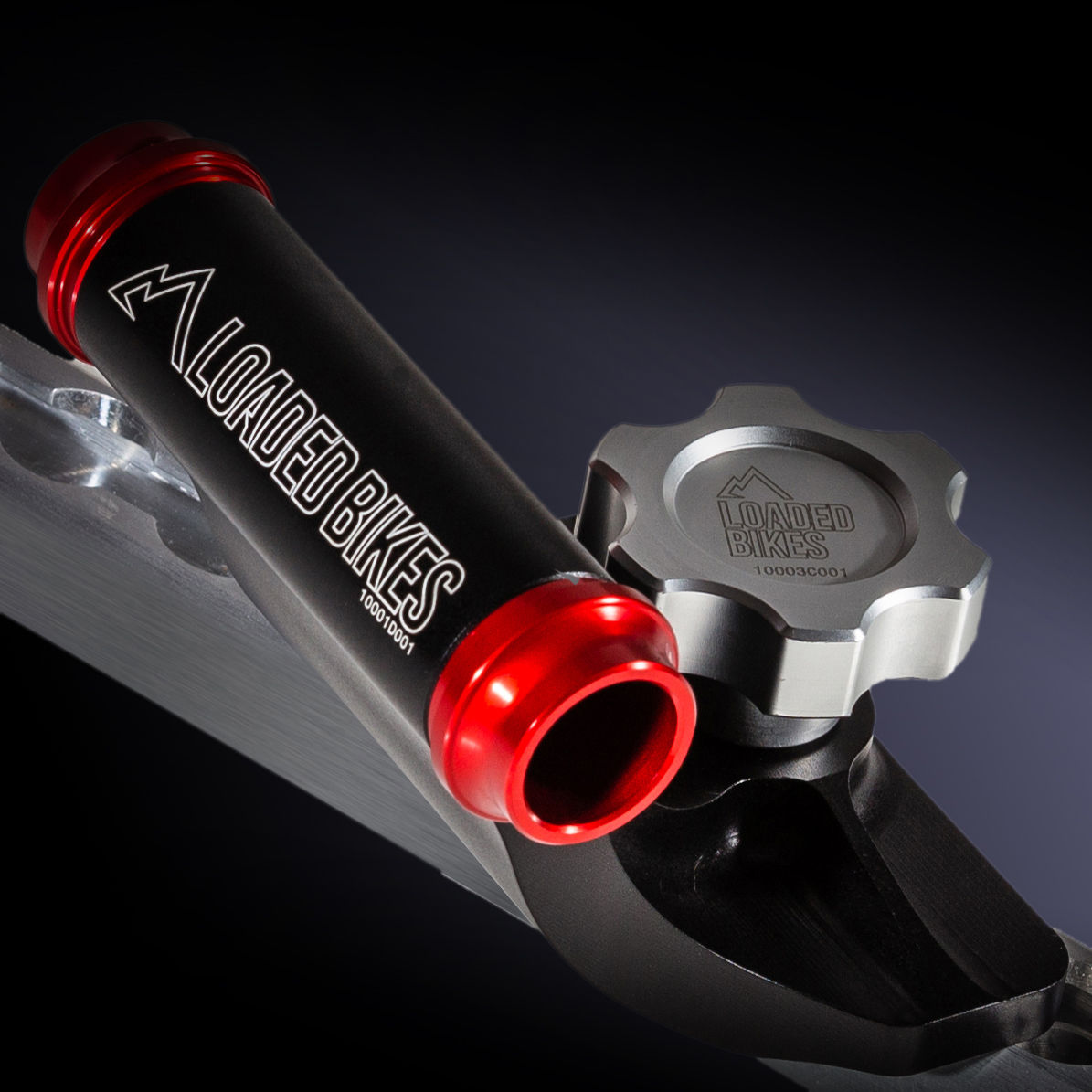

• 20x110mm Down Hill (red)

Additional pairs of spacers available to purchase separately if required.

If you’re not sure what spacers are compatible with your bike/s, you may find Loaded Bikes What Fork Mount Adaptors do I need for my bike? article helpful.

Fork Mount L-Track Compatibility:

• Loaded Bikes Flush & Surface Mounted L-Track Rails
• Mercedes OEM flush L-Track Rails
• Genuine Unwin low profile and surface mounted L-Track Rails

**FLUSH/SURFACE MOUNTED RAILS NOT INCLUDED**

Product Information:

• Designed and manufactured in the UK
• CNC machined from high-strength aluminium billet
• Analytically crash-tested to stand up to 20G of force with a bike weighing up to 27kg
• Integrated off-set and central fitting method to enable 360° rotation (in 22.5° increments)
• Available with a range of spacers to accommodate a variety of bicycle fork types

Heavy Duty Nylon Hooks, made to be strong and durable with a flat back and rounded hook shape are a great way to add hanging options inside your van.

Dimensions:

Overall height 136mm (Flat backed area 80mm)
Width 19mm
Depth 35mm

The 3.5mm countersunk holes, spaced 45mm apart.

Fixings not supplied.

If installing into the ply side panels, it’s recommend that you reinforce this so you are not just relying on the strength of the thin ply sheet.
